Dimensions (L x W x H)
150 x 140 x 86mm
80 PLUS RATING
GOLD
ATX Version
Intel ATX 12V V2.52
Protections
OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification
CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / RCM / NOM / BSMI / KC
PFC
0.99
Input Voltage
100V-240V
Input Current
10A-5A
Input Frequency
47Hz-63Hz
Operating Temperature
50℃
Fan Size
12cm
Fan Bearing
FDB (Fluid Dynamic Bearing)
Fan Speed
2400
Noise Level
Noise Level @ 20% : 11.2dB(A)
Noise Level @ 50% : 850W : 11.3dB(A) / 750W : 11.3dB(A) / 650W : 11.2dB(A)
Noise Level @ 100% : 850W : 24.7dB(A) / 750W : 22.7dB(A) / 650W : 22.3dB(A)
MTBF
100K hours at full load

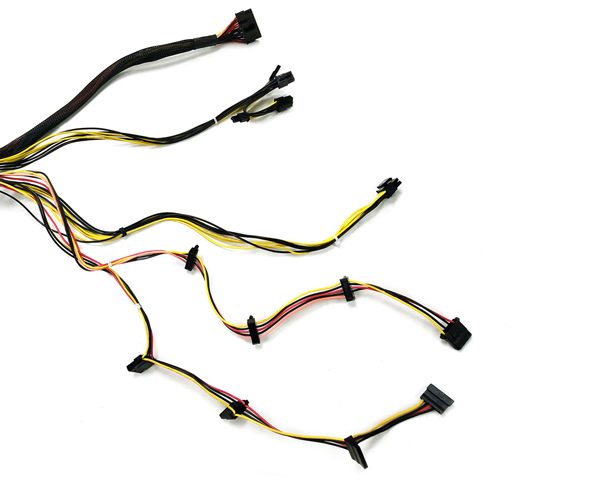

ATX 24 Pin Connector
1
EPS 8 (4+4) Pin Connector
850W : 2 / 750W : 2 / 650W : 2
SATA Connector
12
Peripheral 4 Pin Connector
4
PCI-E 6+2 Pin Connector
850W : 6 / 750W : 6 / 650W : 4
Warranty
10 Year
Note
NA
